All weather cross terrain tire
The Nitto Nomad Grappler is a versatile all weather, cross-terrain tire, and is designed to provide comfort during highway driving with added traction during those off-road adventures. Using a combination of features found in a highway terrain and an all-terrain to deliver a super balance for both. The tread design provides a quieter experience on paved roads while aggressive features add the extra traction needed when tackling the trails or in adverse weather.
Helps stabilize the outer blocks for increased performance and reduces the chance of irregular wear.
The zig zag design breaks up the airflow for less tire resonance for a quieter more comfortable tire.

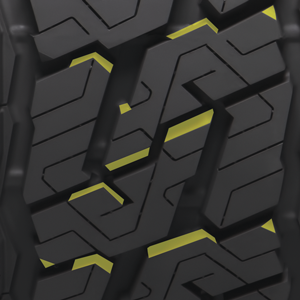

Tapered blocks increase block rigidity while also reducing the chance of irregular wear on the leading edge of the block.
Less irregular wear means less road noise.

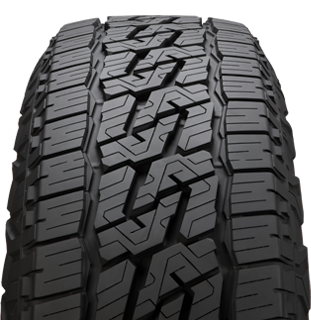

An advanced computer-generated, symmetric tread design ensures dependable traction and the evacuation of rain, slush, mud, or snow.
Multiple rotation options to reduce the chances of irregular wear for longer tread life.

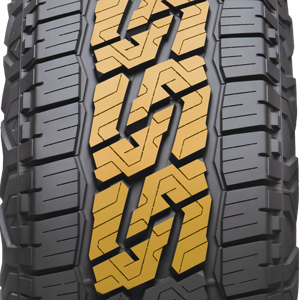

A unique center “S” shaped tread pattern is specifically angled to add traction while accelerating, cornering, or breaking in all terrains and weather conditions.
The large rib style design helps maintain stability at highway speeds.
Large “staggered” outside tread blocks add traction in mud, slush or snow.
The large design adds stability on paved roads while cornering.

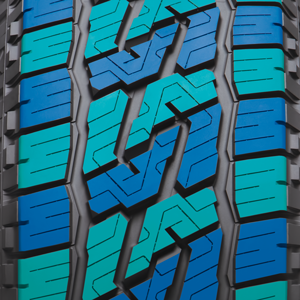

Offset staggered block angles increase grip and reduce road noise.
The zig zag shape of the circumferential grooves further reduces tire resonance noise for a more comfortable ride.
Varied angle 3D siping adds traction on slippery surfaces.
The 3D design locks the sipes together for reduced block movement.
Aggressive design improves traction in mud, sand, slush or snow.
Two unique sidewall designs that provide the option to choose which bold style to feature.
Size | Load/Speed | Code | Approved Rim Width Range (inch) | Overall Diameter (inch) | Overall Width (inch) | Sidewall | Tread Depth (1/32") | Revs/km | Max Load Single (lbs.) | Max Pressure Single (psi) |
---|---|---|---|---|---|---|---|---|---|---|
245/70R17XL | 114T | 211980 | 6.5-(7.0)-8.0 | 30.6 | 9.8 | BL | 13 | 423 | 2601 | 50 |
265/70R17 | 115T | 212250 | 7.0-(8.0)-9.0 | 31.7 | 10.7 | BL | 13 | 408 | 2679 | 44 |
285/70R17 | 116T | 212330 | 7.5-(8.5)-9.5 | 32.8 | 11.5 | BL | 13 | 394 | 2756 | 44 |
215/65R17XL | 103T | 212020 | 6.0-(6.5)-7.5 | 28 | 8.7 | BL | 13 | 460 | 1929 | 50 |
225/65R17XL | 106H | 212100 | 6.0-(6.5)-8.0 | 28.5 | 9 | BL | 13 | 453 | 2094 | 50 |
235/65R17XL | 108H | 212070 | 6.5-(7.0)-8.5 | 29.1 | 9.4 | BL | 13 | 444 | 2205 | 50 |
245/65R17XL | 111H | 211960 | 7.0-(7.0)-8.5 | 29.5 | 9.8 | BL | 13 | 437 | 2403 | 50 |
265/65R17XL | 116T | 212260 | 7.5-(8.0)-9.5 | 30.6 | 10.7 | BL | 13 | 423 | 2756 | 50 |
225/60R17XL | 103H | 212090 | 6.0-(6.5)-8.0 | 27.6 | 9 | BL | 13 | 467 | 1929 | 50 |
225/55R17XL | 101H | 212060 | 6.0-(7.0)-8.0 | 26.8 | 9.2 | BL | 13 | 482 | 1819 | 50 |
235/55R17XL | 103H | 212130 | 6.5-(7.5)-8.5 | 27.2 | 9.6 | BL | 13 | 475 | 1929 | 50 |
Size | Load/Speed | Code | Approved Rim Width Range (inch) | Overall Diameter (inch) | Overall Width (inch) | Sidewall | Tread Depth (1/32") | Revs/km | Max Load Single (lbs.) | Max Pressure Single (psi) |
---|---|---|---|---|---|---|---|---|---|---|
235/65R18XL | 110H | 212120 | 6.5-(7.0)-8.5 | 30 | 9.4 | BL | 13 | 430 | 2337 | 50 |
255/65R18XL | 115T | 212140 | 7.0-(7.5)-9.0 | 31.1 | 10.2 | BL | 13 | 416 | 2679 | 50 |
225/60R18XL | 104H | 212150 | 6.0-(6.5)-8.0 | 28.6 | 9 | BL | 13 | 451 | 1984 | 50 |
235/60R18XL | 107V | 212080 | 6.5-(7.0)-8.5 | 29.1 | 9.4 | BL | 13 | 444 | 2149 | 50 |
245/60R18XL | 109H | 212110 | 7.0-(7.0)-8.5 | 29.6 | 9.8 | BL | 13 | 437 | 2271 | 50 |
255/60R18XL | 112H | 212220 | 7.0-(7.5)-9.0 | 30 | 10.2 | BL | 13 | 430 | 2469 | 50 |
265/60R18XL | 114H | 211990 | 7.5-(8.0)-9.5 | 30.5 | 10.7 | BL | 13 | 423 | 2601 | 50 |
225/55R18XL | 102H | 212180 | 6.0-(7.0)-8.0 | 27.8 | 9.2 | BL | 13 | 465 | 1874 | 50 |
235/55R18XL | 104H | 212160 | 6.5-(7.5)-8.5 | 28.1 | 9.6 | BL | 13 | 459 | 1984 | 50 |
255/55R18XL | 109H | 212270 | 7.0-(8.0)-9.0 | 29 | 10.4 | BL | 13 | 445 | 2271 | 50 |
Size | Load/Speed | Code | Approved Rim Width Range (inch) | Overall Diameter (inch) | Overall Width (inch) | Sidewall | Tread Depth (1/32") | Revs/km | Max Load Single (lbs.) | Max Pressure Single (psi) |
---|---|---|---|---|---|---|---|---|---|---|
245/60R20XL | 111H | 212210 | 7.0-(7.0)-8.5 | 31.6 | 9.8 | BL | 13 | 409 | 2403 | 50 |
275/60R20XL | 116H | 212320 | 7.5-(8.0)-9.5 | 33 | 11 | BL | 13 | 391 | 2756 | 50 |
235/55R20XL | 105H | 212190 | 6.5-(7.5)-8.5 | 30.2 | 9.6 | BL | 13 | 428 | 2039 | 50 |
255/55R20XL | 110H | 212170 | 7.0-(8.0)-9.0 | 31 | 10.4 | BL | 13 | 416 | 2337 | 50 |
275/55R20XL | 117H | 212310 | 7.5-(8.5)-9.5 | 31.9 | 11.2 | BL | 13 | 405 | 2833 | 50 |
245/50R20XL | 105H | 212030 | 7.0-(7.5)-8.5 | 29.7 | 10 | BL | 13 | 435 | 2039 | 50 |
255/50R20XL | 109H | 212200 | 7.0-(8.0)-9.0 | 30.1 | 10.4 | BL | 13 | 429 | 2271 | 50 |
265/50R20XL | 111V | 212050 | 7.5-(8.5)-9.5 | 30.5 | 10.9 | BL | 13 | 424 | 2403 | 50 |
285/50R20XL | 116H | 212340 | 8.0-(9.0)-10.0 | 31.3 | 11.7 | BL | 13 | 413 | 2756 | 50 |
245/45R20XL | 103H | 212350 | 7.5-(8.0)-9.0 | 28.7 | 9.6 | BL | 13 | 451 | 1929 | 50 |
255/45R20XL | 105V | 212040 | 8.0-(8.5)-9.5 | 29.1 | 10 | BL | 13 | 444 | 2039 | 50 |
265/45R20XL | 108H | 211970 | 8.5-(9.0)-10.0 | 29.4 | 10.5 | BL | 13 | 439 | 2205 | 50 |
275/45R20XL | 110H | 212300 | 8.5-(9.0)-10.5 | 29.8 | 10.7 | BL | 13 | 434 | 2337 | 50 |
255/40R20XL | 101H | 212290 | 8.5-(9.0)-10.0 | 28 | 10.2 | BL | 13 | 460 | 1819 | 50 |
Technical specs are subject to change without notice.
Treadwear Warranty
Metric = 100,000 kms or 5 years from date of retail purchase, whichever is first.
Nitto Tire Canada offers a limited Warranty package which includes the "Workmanship and Materials Warranty" and a "Treadwear Warranty". It explains which Nitto tire patterns are covered, the nature of the coverage and what is required by the purchaser to maintain the coverage in force. To download the complete warranty booklet, click on the appropriate link.
- Nitto Limited Warranty - Replacement Passenger and Light Truck Tires
For additional assistance, please contact our Consumer Relations Department by email or phone.
866-476-4886 (1-866-47N-ITTO)
