Performance Ratings
HIGHWAY TERRAIN LIGHT TRUCK RADIAL

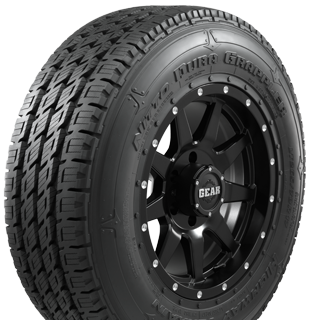

An all season highway terrain tire that provides a combination of tread life and ride comfort. The Dura Grappler® is suitable for a wide variety of light trucks, SUVs and CUVs. It is also available in popular ‘E’ load range, heavy-duty LT sizes for today’s demanding diesel trucks. Whether you’re working on a construction site or towing your toys, the Dura Grappler® is designed to meet your needs.
Performance Ratings
FIND YOUR TIRES
-->

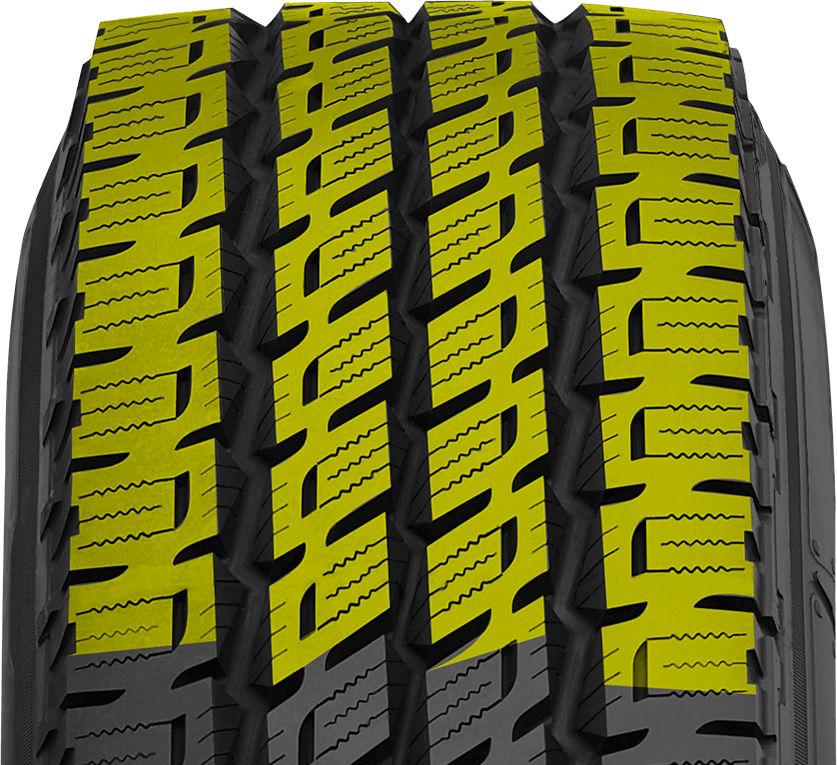

Tread Life
Bridges were added between tread blocks to join individual blocks into continuous ribs. This stabilizes the tire and reduces tread flex. This, in combination with harder compounds, provides improved tread life.
Image:
Dura-Belt Technology
Dura-Belt® 3Steel Belted Technology reinforces and stabilizes the tire’s internal construction to help reduce irregular wear and improve treadlife.
Image:

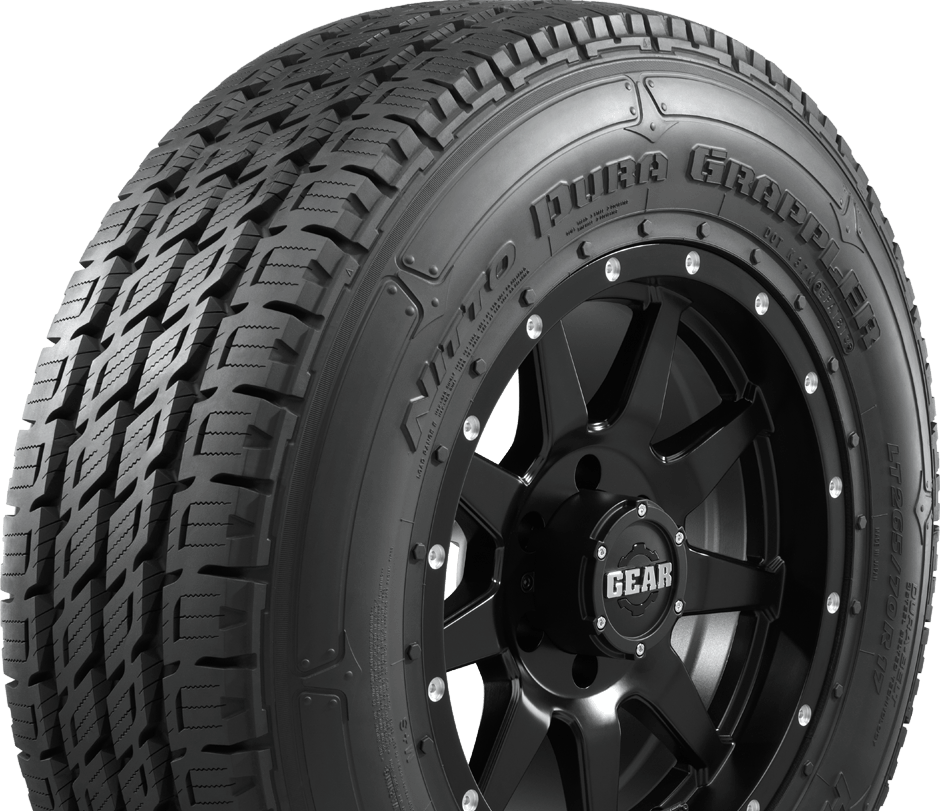

Specific Patterns to Meet Your Needs
The Dura Grappler® features two distinct sidewall designs so you can customize your look. LT-Metric sizes are offered in a durable 4-rib design, while P-Metric sizes have a quiet 5-rib design.
Image:
Advanced Siping Technologie
Waved sipes increase traction in wet conditions while maintaining tread block rigidity.
Image:

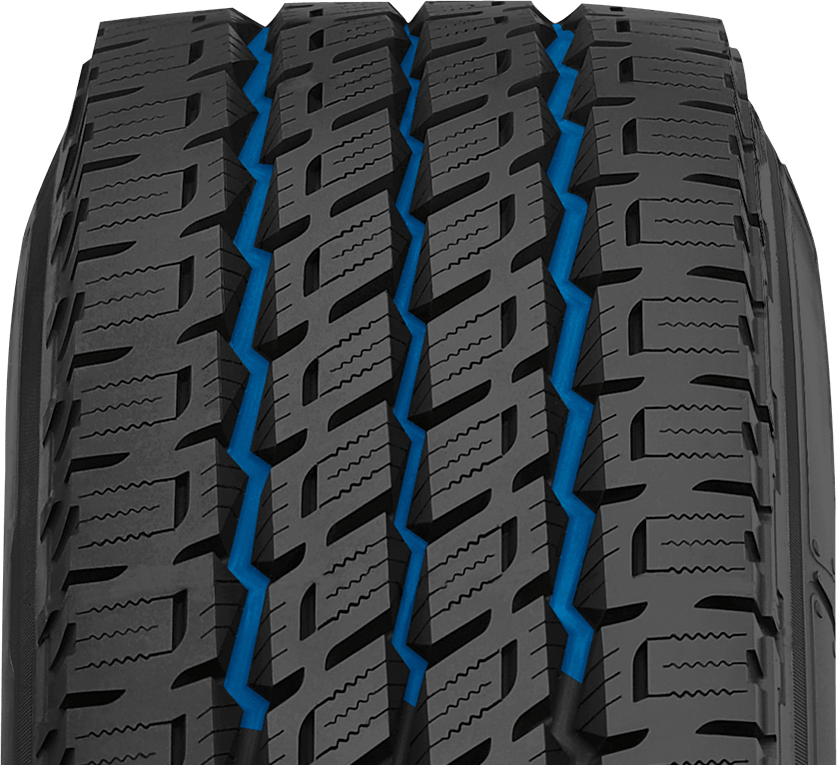

Wet Performance
Circumferential grooves evacuate water from the tread pattern to maintain road traction in wet and slushy conditions.
Image:
| Size | Load/Speed | Code | Approved Rim Width Range (inch) | Overall Diameter (inch) | Overall Width (inch) | Sidewall | Tread Depth (1/32") | Revs/km | Max Load Single (lbs.) | Max Pressure Single (psi) |
|---|---|---|---|---|---|---|---|---|---|---|
| LT235/85R16 | 120/116R | 205140 | 6.0-(6.5)-7.5 | 31.7 | 9.6 | BL | 16 | 407 | 3042 /2778 | 80 /80 |
| LT245/75R16 | 120/116R | 205090 | 6.5-(7.0)-8.0 | 30.5 | 10 | BL | 16 | 424 | 3042 /2778 | 80 /80 |
| LT265/75R16 | 123/120Q | 205620 | 7.0-(7.5)-9.0 | 31.7 | 31.7 | BL | 64 | 408 | 3415 /3085 | 80 /80 |
| LT285/75R16 | 126/123R | 205110 | 7.5-(8.0)-9.5 | 32.9 | 11.5 | BL | 17 | 393 | 3750 /3415 | 80 /80 |
| LT305/70R16 | 124/121R | 205040 | 8.0-(9.0)-10.0 | 32.8 | 12.6 | BL | 17 | 394 | 3525 /3195 | 65 /65 |
| Size | Load/Speed | Code | Approved Rim Width Range (inch) | Overall Diameter (inch) | Overall Width (inch) | Sidewall | Tread Depth (1/32") | Revs/km | Max Load Single (lbs.) | Max Pressure Single (psi) |
|---|---|---|---|---|---|---|---|---|---|---|
| LT235/80R17 | 120/117R | 205130 | 6.0-(6.5)-8.0 | 31.8 | 9.3 | BL | 16 | 406 | 3085 /2835 | 80 /80 |
| LT245/75R17 | 121/118Q | 205650 | 6.5-(7.0)-8.0 | 31.5 | 9.8 | BL | 16 | 410 | 3195 /2910 | 80 /80 |
| LT285/75R17 | 128R | 205370 | 7.5-(8.0)-9.5 | 33.9 | 11.6 | BL | 17 | 382 | 3970 | 80 |
| LT245/70R17 | 119/116R | 205050 | 6.5-(7.0)-8.0 | 30.6 | 9.7 | BL | 16 | 422 | 3000 /2755 | 80 /80 |
| P265/70R17 | 113S | 205200 | 7.0-(8.0)-9.0 | 31.6 | 10.8 | BL | 13 | 409 | 2535 | 35 |
| LT265/70R17 | 121/118Q | 205630 | 7.0-(8.0)-9.0 | 31.7 | 10.7 | BL | 17 | 408 | 3195 /2910 | 80 /80 |
| LT285/70R17 | 121/118R | 205070 | 7.5-(8.5)-9.5 | 32.8 | 11.5 | BL | 17 | 394 | 3195 /2910 | 80 /80 |
| P245/65R17 | 105S | 205270 | 7.0-(7.0)-8.5 | 29.4 | 9.8 | BL | 13 | 438 | 2039 | 44 |
| 265/65R17 | 112T | 205170 | 7.5-(8.0)-9.5 | 30.5 | 10.7 | BL | 13 | 423 | 2469 | 44 |
| Size | Load/Speed | Code | Approved Rim Width Range (inch) | Overall Diameter (inch) | Overall Width (inch) | Sidewall | Tread Depth (1/32") | Revs/km | Max Load Single (lbs.) | Max Pressure Single (psi) |
|---|---|---|---|---|---|---|---|---|---|---|
| 255/70R18XL | 116S | 205350 | 6.5-(7.5)-8.5 | 32.2 | 10.1 | BL | 13 | 401 | 2833 | 50 |
| LT275/70R18 | 125/122R | 205080 | 7.0-(8.0)-9.0 | 33.2 | 11 | BL | 16 | 388 | 3640 /3305 | 80 /80 |
| LT305/70R18 | 126/123R | 205380 | 8.0-(9.0)-10.0 | 35.3 | 12.8 | BL | 17 | 366 | 3750 /3415 | 65 /65 |
| LT275/65R18 | 123/120Q | 205640 | 8.0-(8.0)-9.0 | 32.1 | 11 | BL | 17 | 402 | 3415 /3085 | 80 /80 |
| 265/60R18 | 110H | 205160 | 7.5-(8.0)-9.5 | 30.6 | 10.7 | BL | 13 | 422 | 2337 | 44 |
| LT325/60R18 | 124/121R | 205360 | 9.5-(9.5)-11.5 | 33 | 12.9 | BL | 16 | 391 | 3525 /3195 | 65 /65 |
| Size | Load/Speed | Code | Approved Rim Width Range (inch) | Overall Diameter (inch) | Overall Width (inch) | Sidewall | Tread Depth (1/32") | Revs/km | Max Load Single (lbs.) | Max Pressure Single (psi) |
|---|---|---|---|---|---|---|---|---|---|---|
| LT275/65R20 | 126/123R | 205030 | 8.0-(8.0)-9.5 | 34.1 | 10.9 | BL | 16 | 379 | 3750 /3415 | 80 /80 |
| LT275/60R20 | 123/120R | 205010 | 8.0-(8.0)-9.5 | 33 | 10.9 | BL | 16 | 391 | 3415 /3085 | 80 /80 |
| 275/55R20XL | 117H | 205150 | 7.5-(8.5)-9.5 | 31.9 | 11.3 | BL | 13 | 405 | 2833 | 50 |
| LT305/55R20 | 121/118R | 205340 | 8.5-(9.5)-11.0 | 33.1 | 12.6 | BL | 16 | 390 | 3195 /2910 | 65 /65 |
| Size | Load/Speed | Code | Approved Rim Width Range (inch) | Overall Diameter (inch) | Overall Width (inch) | Sidewall | Tread Depth (1/32") | Revs/km | Max Load Single (lbs.) | Max Pressure Single (psi) |
|---|---|---|---|---|---|---|---|---|---|---|
| LT285/50R22 | 121/118R | 205000 | 8.5-(9.0)-10.0 | 33.3 | 11.5 | BL | 16 | 388 | 3195 /2910 | 80 /80 |
Technical specs are subject to change without notice.
Limited treadwear warranty:
- 100,000 km warranty on P-metric and millimetric sizes.
- 5 year workmanship and materials
CUSTOMER REVIEWS
Fantastic tire for it's designed purpose and use
I purchased these tires from a large western Canadian Tire retailer. The tires were bigger than the stock tires and created a problem with my mud flaps which I ultimately had to replace. I bought the tires as they have the highest load rating in a 17" tire. We have a 41' 5th wheel RV that weighs 17,000lbs when loaded. I put a large number of aftermarket enhancements on the trucks like brakes, leaf springs and even rear air bags. The suspension and braking was greatly improved. Then I looked at my tires and I was overloaded by 150lbs per tire on the rear axle when hitched up. OOPS! I did a lot of research and found that the Nitto Dura Grappler's weight carrying capacity was 250lbs higher than the weight on our back axle. I bought a set four and have never looked back. They are about an 1" wider than the stock tires so I do "perceive" a very slight tendency to wonder particularly if the road surface has deep grooves. This would not be noticeable to most folks. They are very quite. No perceptible road/tread noise at all. They wear very well. Most tires of this size would start to cup on the outer edges and there is none of that with these tires. I have had them on for about 7000 miles now and in no way do I regret having bought them in any way shape or form. They are a great tire from a company well respected in the high performance tire industry. I strongly advise these tires if you do a lot of highway driving you won't regret it.
Yes, I recommend this product.
April 11,2023
By:Highway Man
Vehicle Model:Sierra 3500HD
Postal Code:T4A2L2
Vehicle Make:GMC
Province:Alberta
Helpful0
0Pros and Cons
My truck is a 3/4 Dodge Diesel 4x4 crew cab long box. These tires are incredibly smooth and were beautiful to drive on, but not with a camper. These tires have so much road contact and a decent amount of siping that when you have a truck camper, the additional weight over the front of the vehicle made the steering dangerously unresponsive. Steering into and out of corners took more effort, and to the point where I sold them after only about 500 KMS which is unfortunate, but I did not feel comfortable driving. If you were towing or wanted a very smooth highway tire, these would really be fantastic, but not for direct in box weight. I have been an Auto Tech for 31 years so my review is not based on a lack on knowledge.
Yes, I recommend this product.
April 08,2023
By:Nitto fan
Vehicle Model:2500 4x4 long box 5.9L diesel
Postal Code:v0g1y0
Vehicle Make:Dodge
Province:British-Columbia
Helpful0
0
